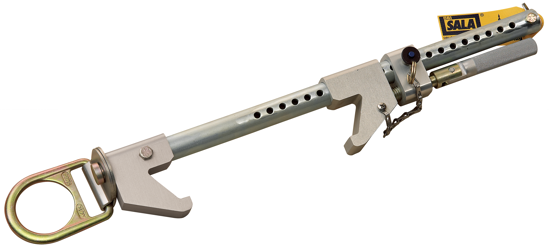

3M | DBI-SALA Fixed Beam Anchor, 2.5 to 12 in. Flange Width, 2108406

Manufacturer: 3M | DBI-SALA
Availability: In stock
SKU: 70007442091
Manufacturer part number: 2108406
Lead Time (subject to change, call to verify): typically ships in 3-5 business days
*
*
$553.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Product Specifications
Attribute nameAttribute value
Features
  • Model: Fixed Beam Anchor - 2108406
  • Attachment Type: Clamp
  • Install Type: Reusable
  • For Use With: I-Beams
  • Flange Width: 2.5 to 12 in. (6.3 - 30.5 cm)
  • Max. Flange Thickness: 1.5 in.
  • Dimensions: 20 x 2.5 x 4 in.
  • Weight: 5.2 lbs.
  • Capacity: 310 lbs. (141 kg) ANSI / 420 lbs. (190 kg) OSHA
  • Ideal as a single-person anchor point and attaches to the beam structure in any orientation and features a built-in adjustment handle.
  • Attach in Any Orientation or Direction - anchor can be attached in any orientation and used with a lanyard, self-retracting lifeline, or as end-anchors for a horizontal lifeline system.
  • Swiveling D-Ring Tie-Off Point - built-in D-ring provides a compatible connection for your fall protection system and swivels, keeping your connecting component in-line at all times.
  • Built-In Tightening Handle - installs in seconds to the beam structure, with detent style attachment and final tightening completed with integrated adjustment handle.
Standards/ApprovalsANSI Z359.18, OSHA 1910.140, OSHA 1926.502
Warranty1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EFP's repair facility.)
