3M | DBI-SALA Fixed Beam Anchor, 2.5 to 24 in. Flange Width, 2108408

Manufacturer: 3M | DBI-SALA

Availability: In stock

SKU: 70007452462

Manufacturer part number: 2108408

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

Flange Width *

Beam Thickness *

$674.00

Qty:

Documents, Drawings, and Manuals

Catalog

3M | DBI-SALA Fall Protection Catalog

Manual

3M | DBI-SALA Fixed Beam Anchor Manual

Product Specifications

Attribute name	Attribute value

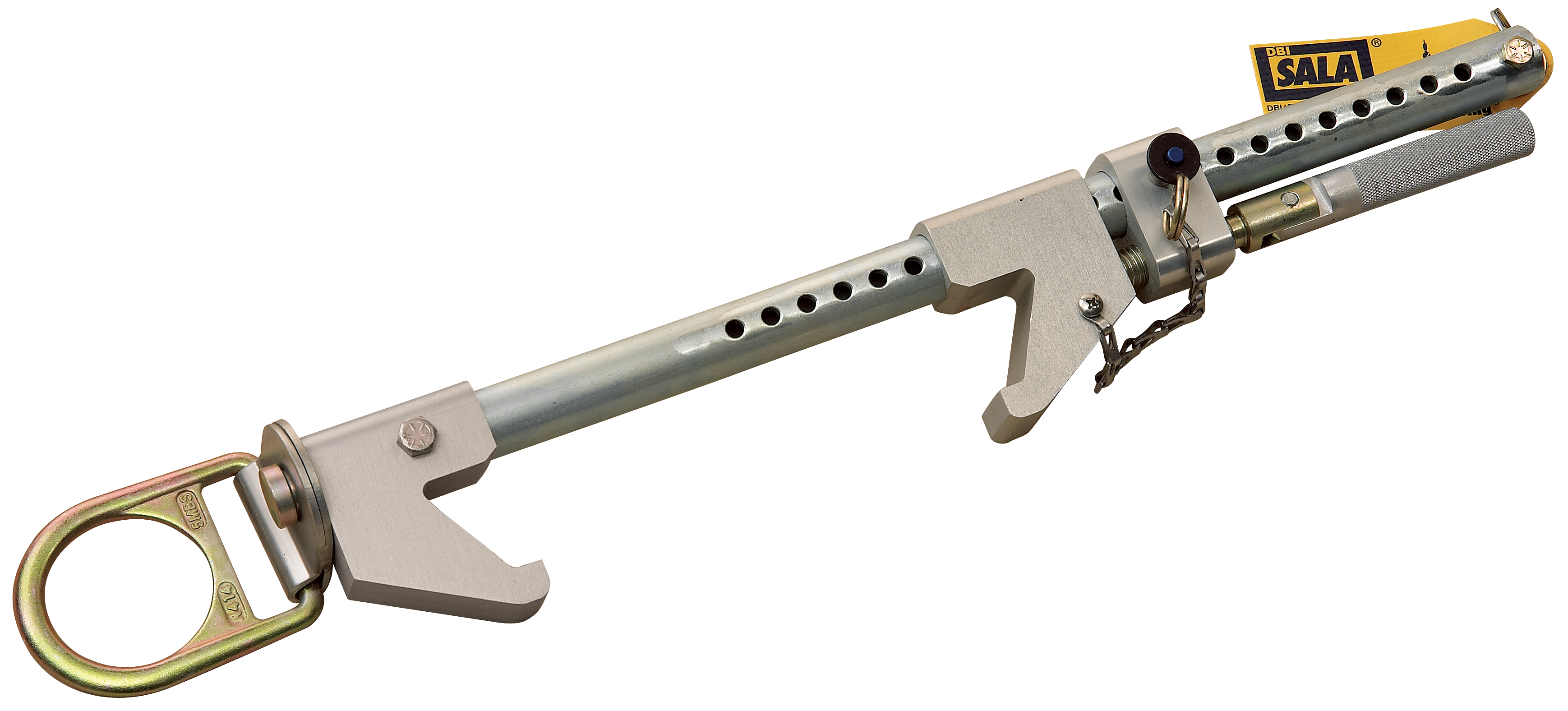

Features	Model: Fixed Beam Anchor - 2108408 Attachment Type: Clamp Install Type: Reusable For Use With: I-Beams Flange Width: 2.5 to 24 in. (6.3 - 61 cm) Max. Flange Thickness: 1.5 in. Dimensions: 32 x 2.5 x 4 in. Weight: 6.7 lbs. Capacity: 310 lbs. (141 kg) ANSI / 420 lbs. (190 kg) OSHA Ideal as a single-person anchor point and attaches to the beam structure in any orientation and features a built-in adjustment handle. Attach in Any Orientation or Direction - anchor can be attached in any orientation and used with a lanyard, self-retracting lifeline, or as end-anchors for a horizontal lifeline system. Swiveling D-Ring Tie-Off Point - built-in D-ring provides a compatible connection for your fall protection system and swivels, keeping your connecting component in-line at all times. Built-In Tightening Handle - installs in seconds to the beam structure, with detent style attachment and final tightening completed with integrated adjustment handle.
Standards/Approvals	ANSI Z359.18, OSHA 1910.140, OSHA 1926.502
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EFP's repair facility.)
