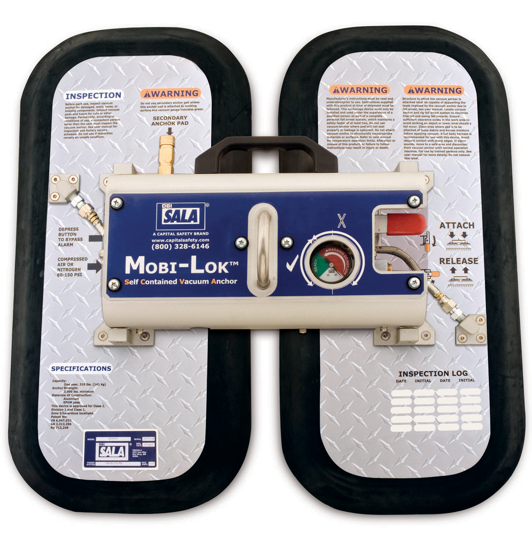

3M | DBI-SALA Mobi-Lok General Industry Vacuum Anchor, 2200094

Manufacturer: 3M | DBI-SALA

Availability: In stock

SKU: 70007452868

Manufacturer part number: 2200094

Lead Time (subject to change, call to verify): typically ships in 5-7 business days

$16,467.83

Qty:

Documents, Drawings, and Manuals

Brochure

3M | DBI-SALA Self-Contained Vacuum Anchor Brochure

Manual

3M | DBI-SALA Self-Contained Vacuum Anchor Manual

Product Specifications

Attribute name	Attribute value
Features	Model: Mobi-Lok Vacuum Anchor, General Industry - 2200094 Attachment Type: Self-Contained Vacuum Install Type: Reusable For Use With: General Industry Main Support Assembly: Anodized Aluminum Vacuum Seal Pad Material: Polybutadiene Electronics: 4 AA Lithium Batteries Shop Air Requirements: 80 psi-150 psi Dimensions: 22.00 x 22.00 x 6.00 in. Weight: 17.4 lbs. Capacity: 310 lbs. (141 kg) Safe and reliable fall arrest system that allows workers to conveniently anchor to virtually any smooth, non-porous surface — providing a secure tie-off point without penetrating or damaging a surface. Connection in Seconds - anchor to a surface without drilling or welding by simply flipping a switch and waiting for the green light to confirm it is secured. Comprehensive Backup System - if the compressed air source is lost, a persistent audio alarm and vacuum level indicator alert the worker while check valves maintain the vacuum seal. Completely Mobile - lightweight and features a convenient carrying handle so it can easily be transported between applications.
Standards/Approvals	OSHA 1910.140, OSHA 1926.502
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EFP's repair facility.)
