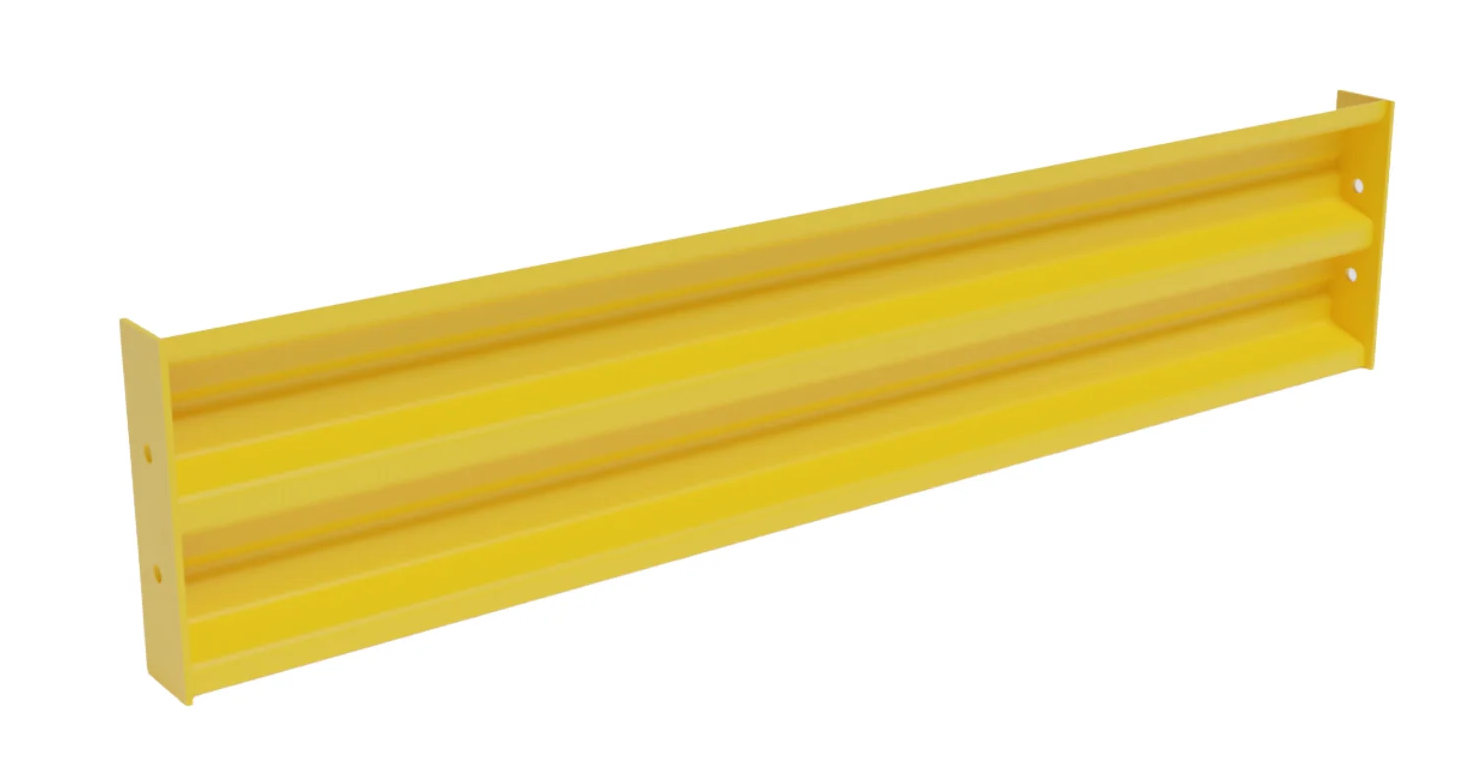

7 ft. Heavy Duty Guardrail Section, R7

Availability: In stock

SKU: R7

Manufacturer part number: R7

Lead Time (subject to change, call to verify): typically ships in 25-30 business days

$118.00

Qty:

Documents, Drawings, and Manuals

Spec Sheet

Heavy Duty Industrial Guardrail Spec Sheet

Brochure

Heartland Guardrail Brochure

Product Specifications

Attribute name	Attribute value
Features	Rating: 10,000-lb load at 4 mph Weight: 56 lbs. Simple layout with universal column Easy installation with all hardware included Bright OSHA yellow finish on columns Columns are 4 in. x 4 in. square tube manufactured from high-strength steel Baseplate is 8 in. x 8 in. x 1/2 in. thick steel and can be offset if needed Rails are 10 ga high-tensile steel formed into a two-rib corrugated design with two secondary ribs (Dimensions: 7 ft. L x 1 ft. W) Anchors are 5-1/2 inch screw anchors and hardware is A325 1/2 inch Rails available in lengths from 2 ft. through 10 feet Easy installation with universal column, all hardware included
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EFP's repair facility.)
