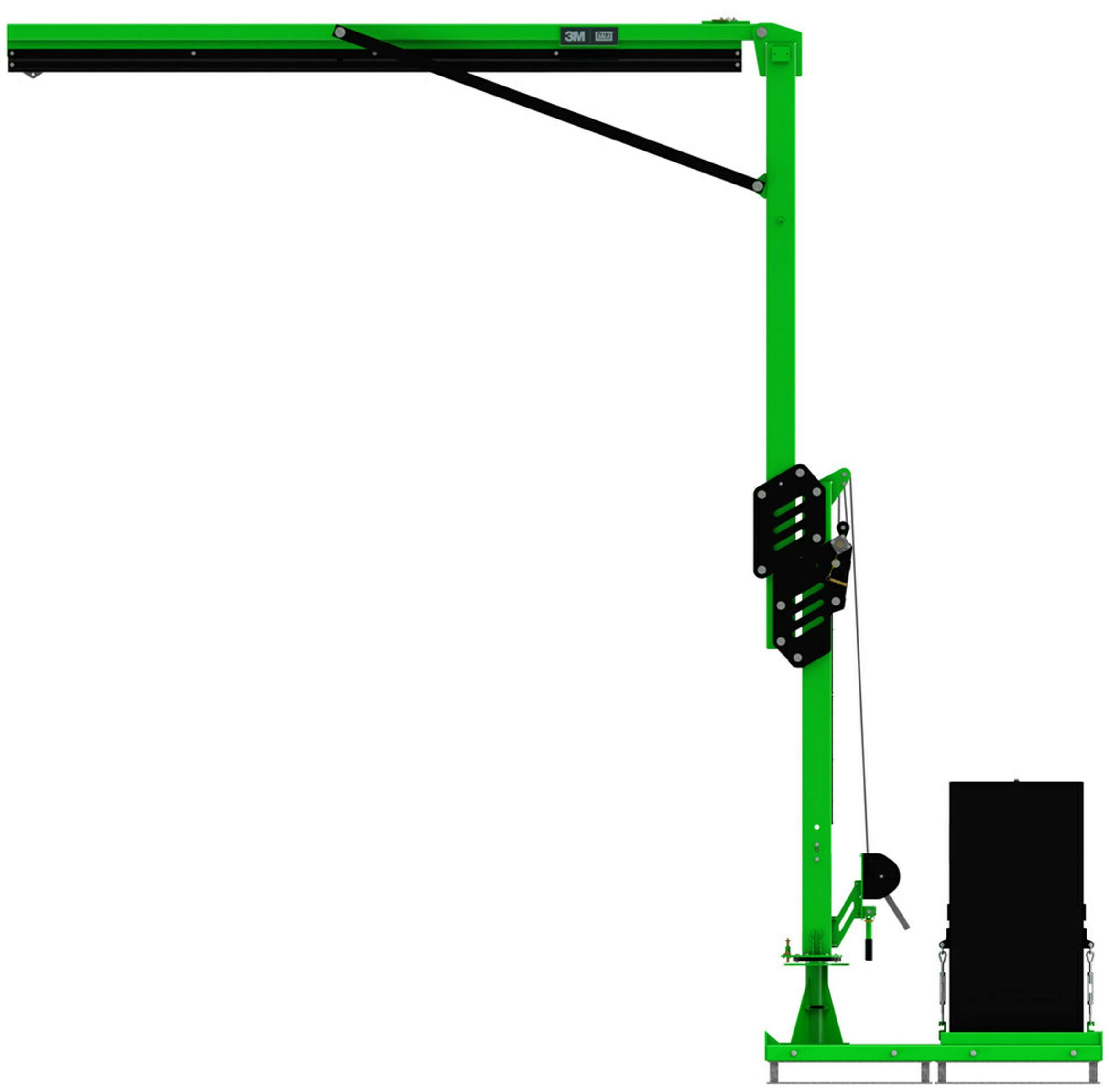

FlexiGuard M200 Adjustable Height, Dual User Modular Portable Jib with Counterweight Base

Manufacturer: 3M | DBI-SALA

Availability: In stock

SKU: 8530895-8530898-CB

Manufacturer part number: 8530895-8530898-CB

Lead Time (subject to change, call to verify): typically ships in 60-70 business days

Call for Price - (314) 492-4422

Documents, Drawings, and Manuals

Brochure

3M | DBI-SALA FlexiGuard Jibs Brochure

Manual

Product Specifications

Attribute name	Attribute value
Features	Total System Weight: 12,668 lbs. (5,746 kg) Max. Component Weight: 5,000 lbs. (2,268 kg) Offset/Reach: 12 ft. (3.7 m) Height: Up to 30 ft. (9.1 m) Mast Rotation Range: 360° Max. Number of Users: 2 Adjustable height masts are adjusted easily using the integrated hand crank winch, or by using a power drill with the optional overload clutch accessory equipped. Features a simplified design that enhances worker safety in multiple applications. Increased rail-length configurations improve working coverage while a new design facilitates easier system transport. Extruded aluminum overhead horizontal rail for SRL trolley. Stainless steel anchor trolley. Fail-safe mast lock eliminates need for height-locking fasteners like pins and bolts. Automatic safety lock engages to prevent uncontrolled mast movement if primary lifting mechanism fails. Flip up rotation handle. Open multi-directional base designed to accommodate a wide array of fork shapes and sizes. Can be transported in one piece with a large lift OR separated into individual components and transported with a 5,000 lb. (2,268 kg) forklift. Removable counterweight box with built in fork pockets. Slip resistant walking surface on counterweight bases.
