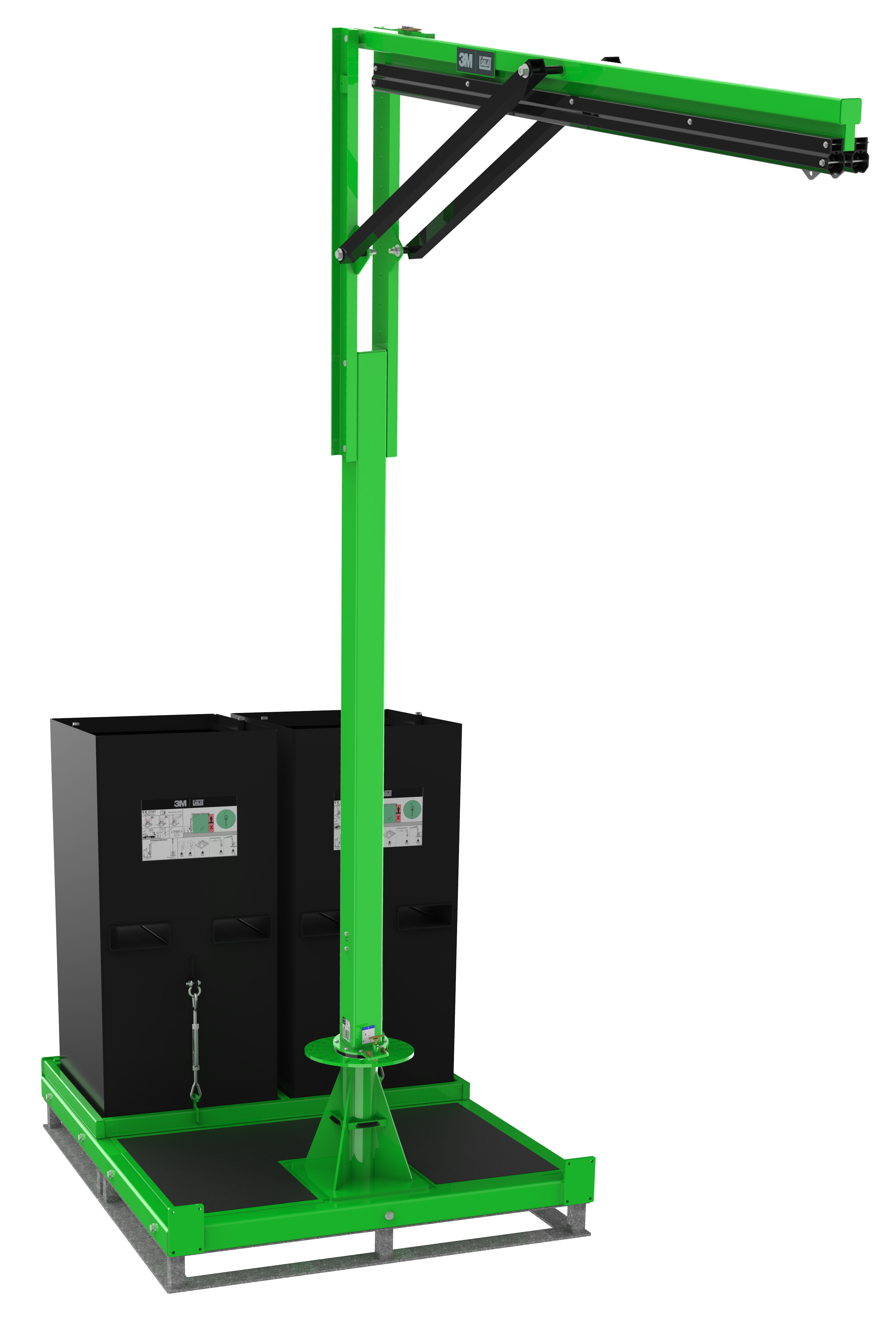

FlexiGuard M200 Semi-Fixed Height, Dual User Modular Portable Jib with Counterweight Base

Manufacturer: 3M | DBI-SALA

Availability: In stock

SKU: 8530902-8530904-CB

Manufacturer part number: 8530902-8530904-CB

Lead Time (subject to change, call to verify): typically ships in 60-70 business days

Call for Price - (314) 492-4422

Documents, Drawings, and Manuals

Brochure

3M | DBI-SALA FlexiGuard Jibs Brochure

Manual

Product Specifications

Attribute name	Attribute value
Features	Total System Weight: 12,668 lbs. (5,746 kg) Max. Component Weight: 5,000 lbs. (2,268 kg) Offset/Reach: 12 ft. (3.7 m) Height: Up to 30 ft. (9.1 m) Mast Rotation Range: 360° Max. Number of Users: 2 Semi-fixed masts offer a small amount (5 ft. or 1.5 m) of adjustment to optimize the anchor height during installation. Features a simplified design that enhances worker safety in multiple applications. Increased rail-length configurations improve working coverage while a new design facilitates easier system transport. Extruded aluminum overhead horizontal rail for SRL trolley. Stainless steel anchor trolley. Open multi-directional base designed to accommodate a wide array of fork shapes and sizes. Can be transported in one piece with a large lift OR separated into individual components and transported with a 5,000 lb. (2,268 kg) forklift. Removable counterweight box with built in fork pockets. Slip resistant walking surface on counterweight bases.
