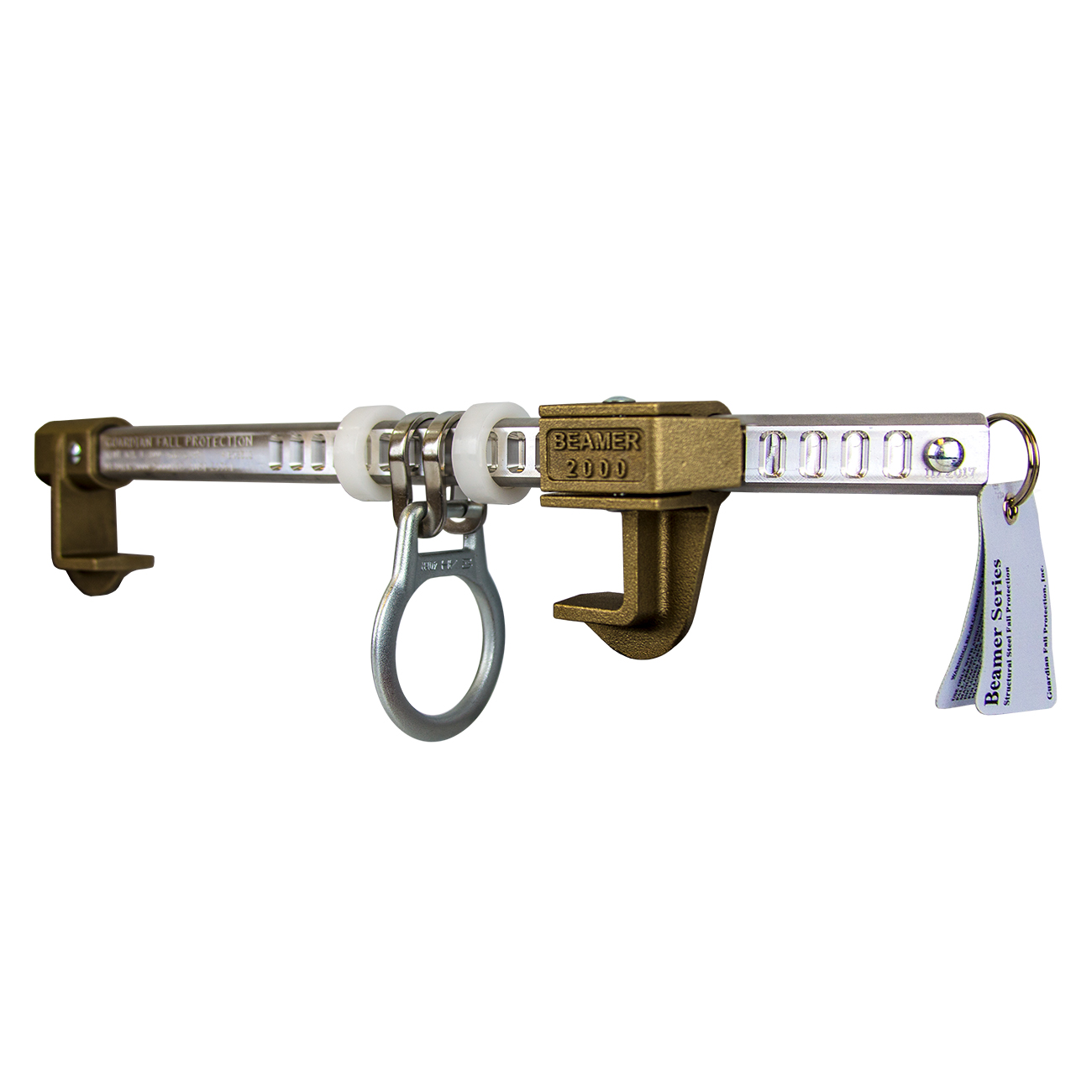

Guardian Beamer 2000, 6 to 16 in. Flange Width, 00103

Availability: In stock

SKU: 00103

Manufacturer part number: 00103

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

Flange Width *

Beam Thickness *

$359.78

Qty:

Documents, Drawings, and Manuals

Brochure

Guardian Steel Beam Anchors Brochure

Manual

Guardian Steel Beam Anchors Manual

Product Specifications

Attribute name	Attribute value
Features	Model: Beamer 2000 - 00103 Attachment Type: Clamp Install Type: Reusable Flange Width: 6 to 16 in. Max. Flange Thickness: 1.25 in. Min. Breaking Strength: 5,000 lbs. Capacity: 130 - 420 lbs. Weight: 4 lbs. Versatile anchor designed for use either overhead or at foot level that trails behind the user during work. Nylon Bushings - provide smooth movement along the beam, that also function as impact indicators in the event of a fall. Durable Construction - bronze-manganese components resist weld slag and other contaminants and welding spatter doesn’t stick to aluminum bar. Adjustable Foot - adjusts with simple toggle release and allows for quick and easy adjustment with just one hand.
Standards/Approvals	ANSI Z359.18-17, ANSI A10.32-12, OSHA 1926 Subpart M, OSHA 1910
Warranty	Lifetime Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EFP's repair facility.)
