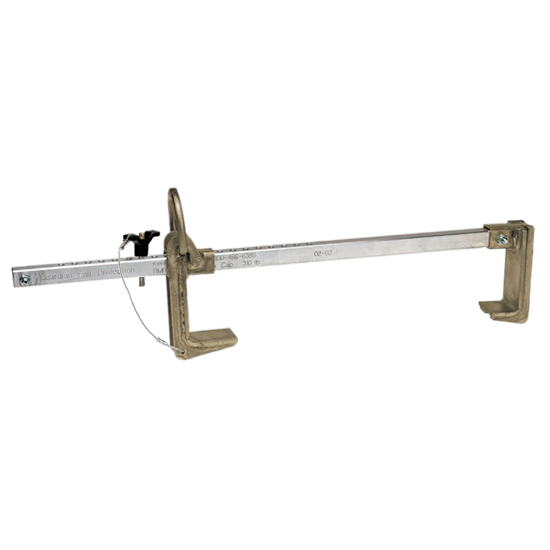

Guardian Beamer BBC, 12 to 24 in. Flange Width, 00130-00135

Availability: In stock

SKU: 00130-00135

Manufacturer part number: 00130-00135

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

Flange Width *

Beam Thickness *

$386.43

Qty:

Documents, Drawings, and Manuals

Brochure

Guardian Steel Beam Anchors Brochure

Manual

Guardian Steel Beam Anchors Manual

Product Specifications

Attribute name	Attribute value

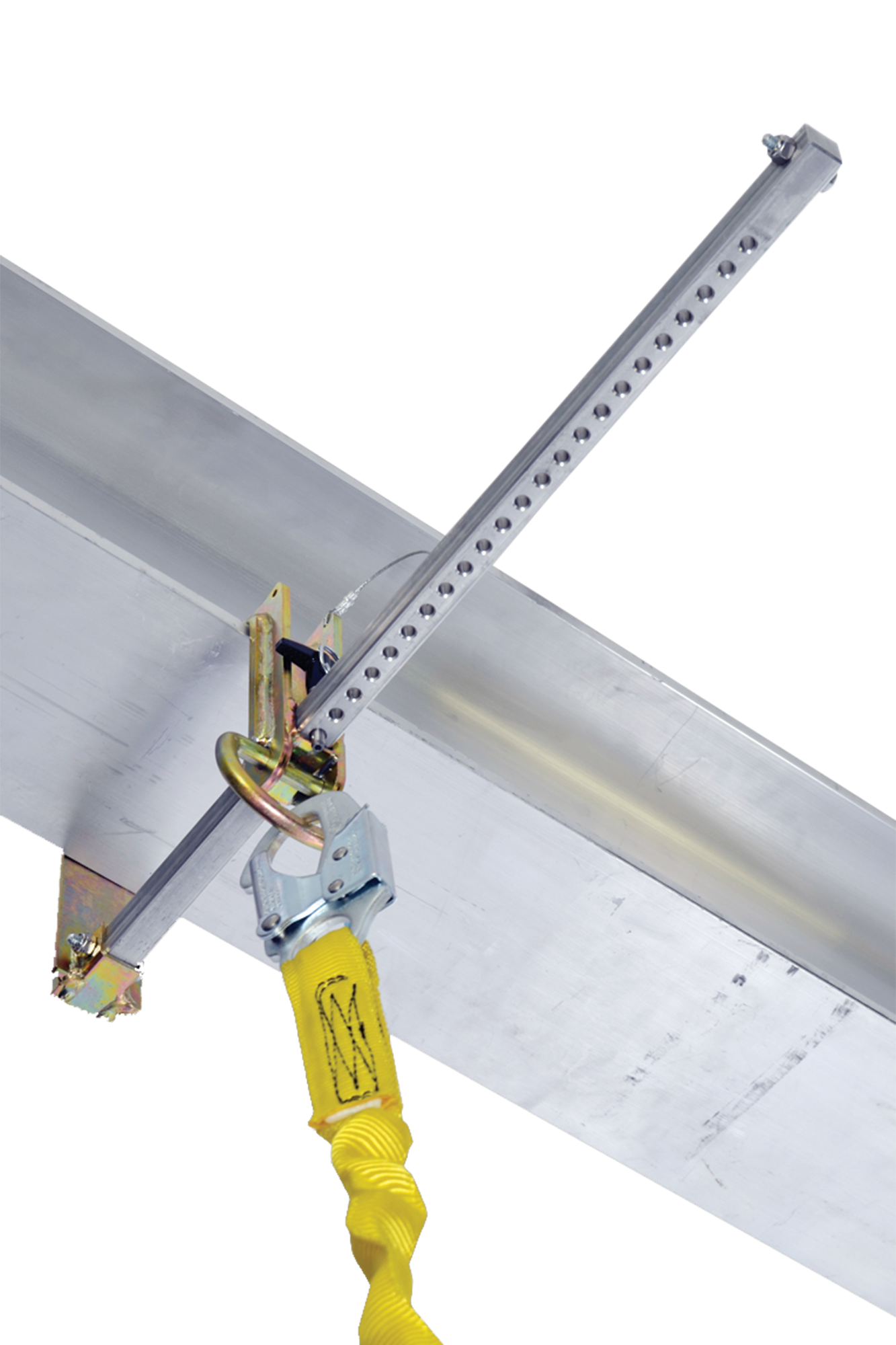

Features	Model: Beamer BBC Attachment Type: Clamp Install Type: Reusable Flange Width: 12 to 24 in. Min. Breaking Strength: 5,000 lbs. Capacity: 130 - 420 lbs. Weight: 5.0 lbs. Fall Arrest anchor designed for use on the top or bottom flange of a steel I or H beam. It shares many of the features of its relative, the Beamer 2000, but with models available to fit an even wider variety of beams. Easy to Install - locks adjustable clamp into place with simple locking pin. Moves Smoothly Along Beam - trails along the beam with user during work. Lightweight and Durable - bronze-manganese components resist weld slag and other contaminants.
Standards/Approvals	ANSI Z359.18-17, ANSI A10.32-12, OSHA 1926 Subpart M, OSHA 1910
Warranty	Lifetime Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EFP's repair facility.)
