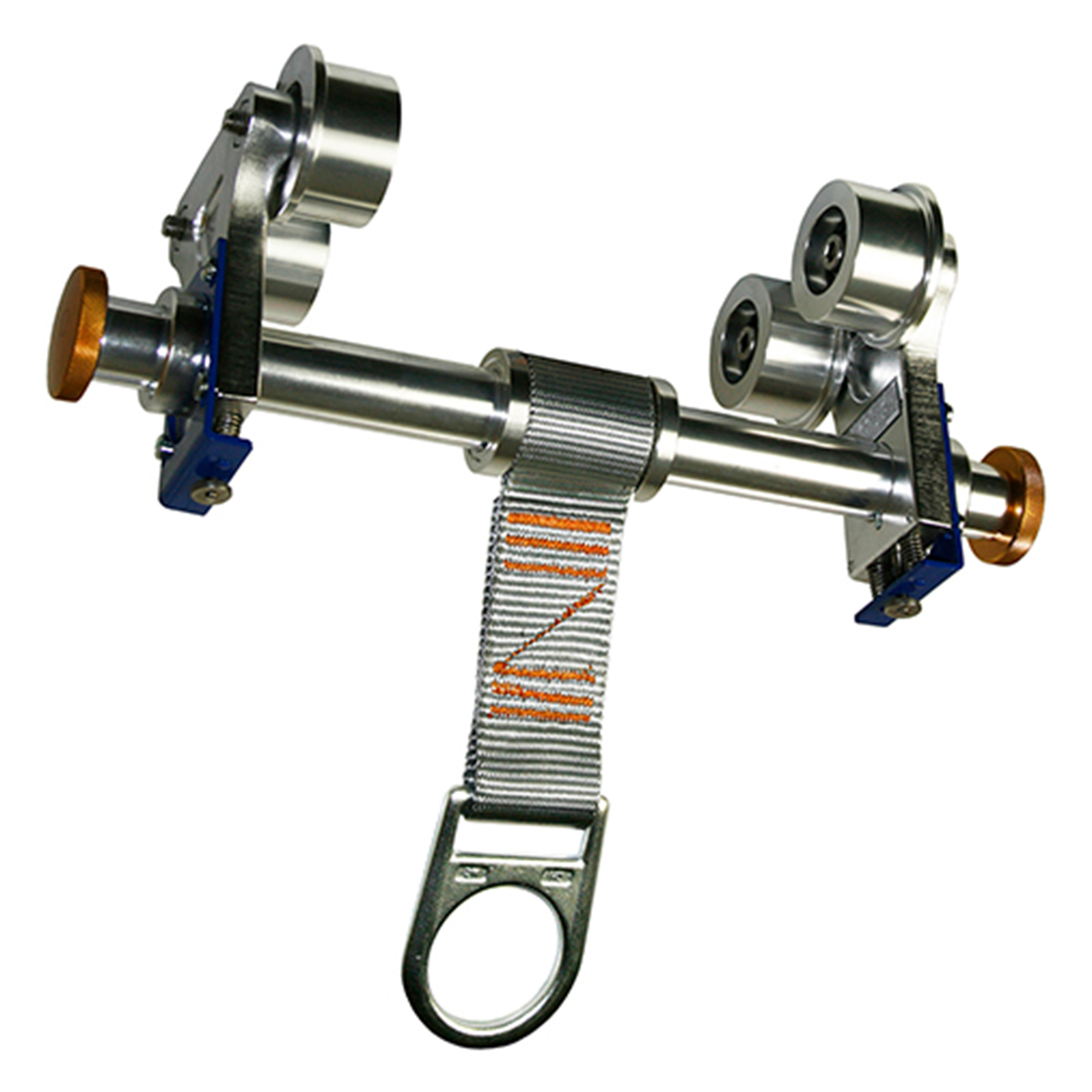

Guardian Beamer Trolley Anchor, 3 to 10 in. Flange Width, 00215

Availability: In stock

SKU: 00215

Manufacturer part number: 00215

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

Flange Width *

Beam Thickness *

$598.60

Qty:

Documents, Drawings, and Manuals

Brochure

Guardian Steel Beam Anchors Brochure

Manual

Guardian Steel Beam Anchors Manual

Product Specifications

Attribute name	Attribute value
Features	Model: Beamer Trolley Anchor - 00215 Install Type: Reusable Flange Width: 3 to 10 in. Max. Flange Thickness: 0.9 in. Min. Breaking Strength: 5,000 lbs. Capacity: 130 - 420 lbs. Weight: 5.0 lbs. The Beamer Trolly Anchor is intended for installation to steel beams and is specially designed with rollers for smooth travel along the beam. Beam Rollers - allow for smooth travel around the work area while always remaining tied off. Safety Locking Toggles - allow for both easy adjustment and eliminate the risk of accidental clamp slippage. Durable Strap - strap with D-Ring makes connection point easy to access.
Standards/Approvals	ANSI Z359.18-17, ANSI A10.32-12, OSHA 1926 Subpart M, OSHA 1910
Warranty	Lifetime Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EFP's repair facility.)
