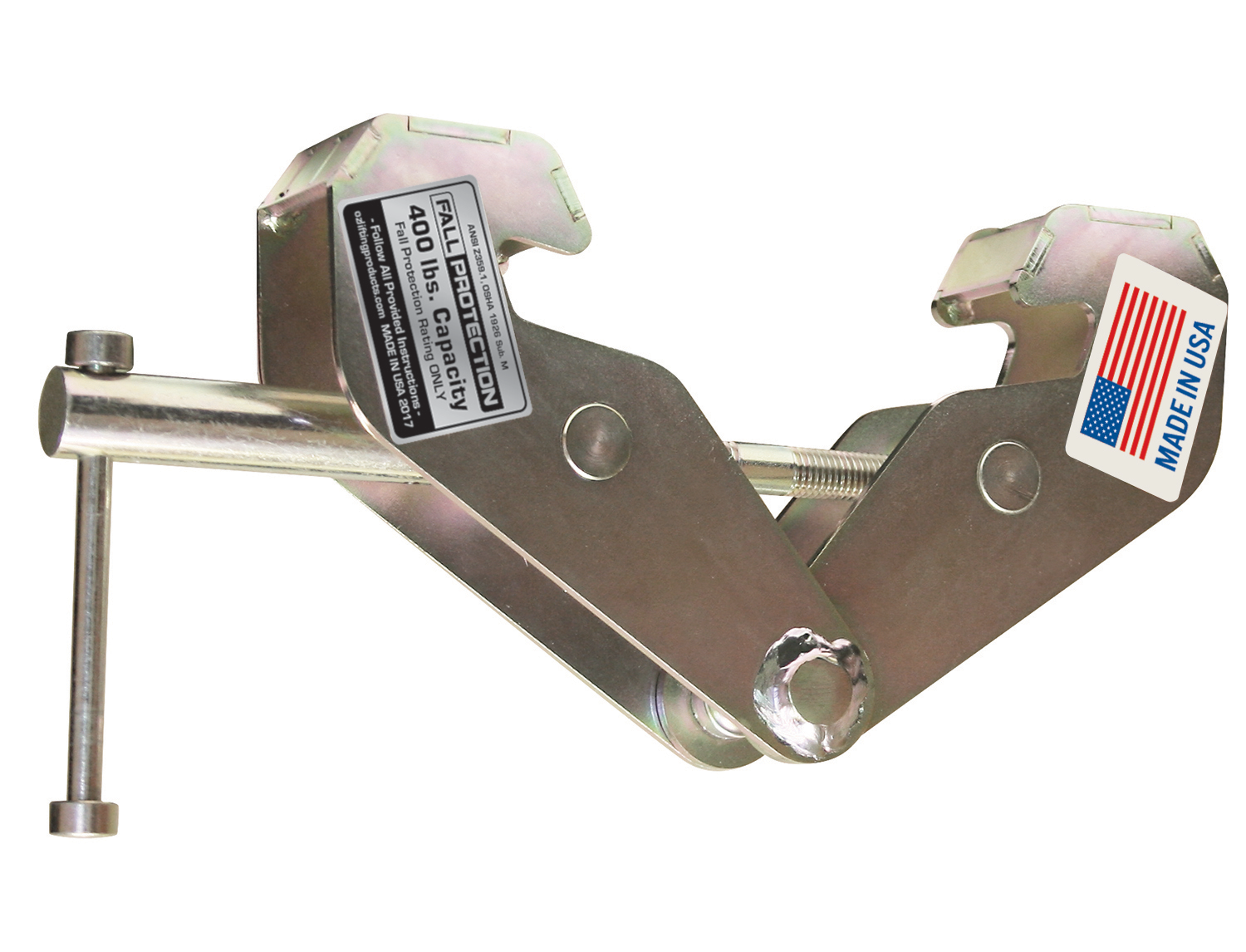

OZ Fall Protection Beam Clamp, 3.5 to 13 in. Flange Width, OZ3BCA-MR

Availability: In stock

SKU: OZ3BCA-MR

Manufacturer part number: OZ3BCA-MR

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Flange Width *

Beam Thickness *

$281.00

Qty:

Documents, Drawings, and Manuals

Brochure

OZ Fall Protection Clamps & Trolleys Brochure

Manual

OZ Fall Protection Clamps & Trolleys Manual

Product Specifications

Attribute name	Attribute value
Features	Part No.: OZ3BCA-MR Fall Protection Capacity: 400 lbs. Material Handling Load: 6,000 lbs. Flange Width: 3.5 to 13 in. Max. Flange Thickness: 1.5 in. Weight: 23.0 lbs. Robust all-steel, fully-welded construction. Super-quick adjustment to most I-Beams. ROHS-compliant, zinc-plated finish. Permanent engraved load rating. Secondary rod lock nut.
Standards/Approvals	OSHA 1926 Subpart M, OSHA 1910.140, ASME Z359.1, ASME A10.32-2012
Warranty	10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EFP's repair facility.)
Country of Origin	Made in the USA
