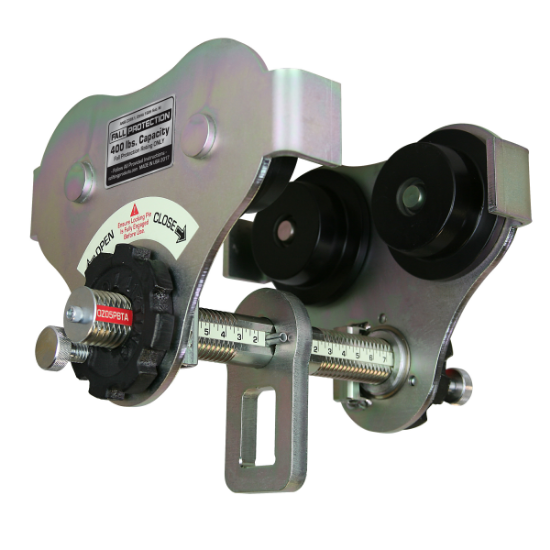

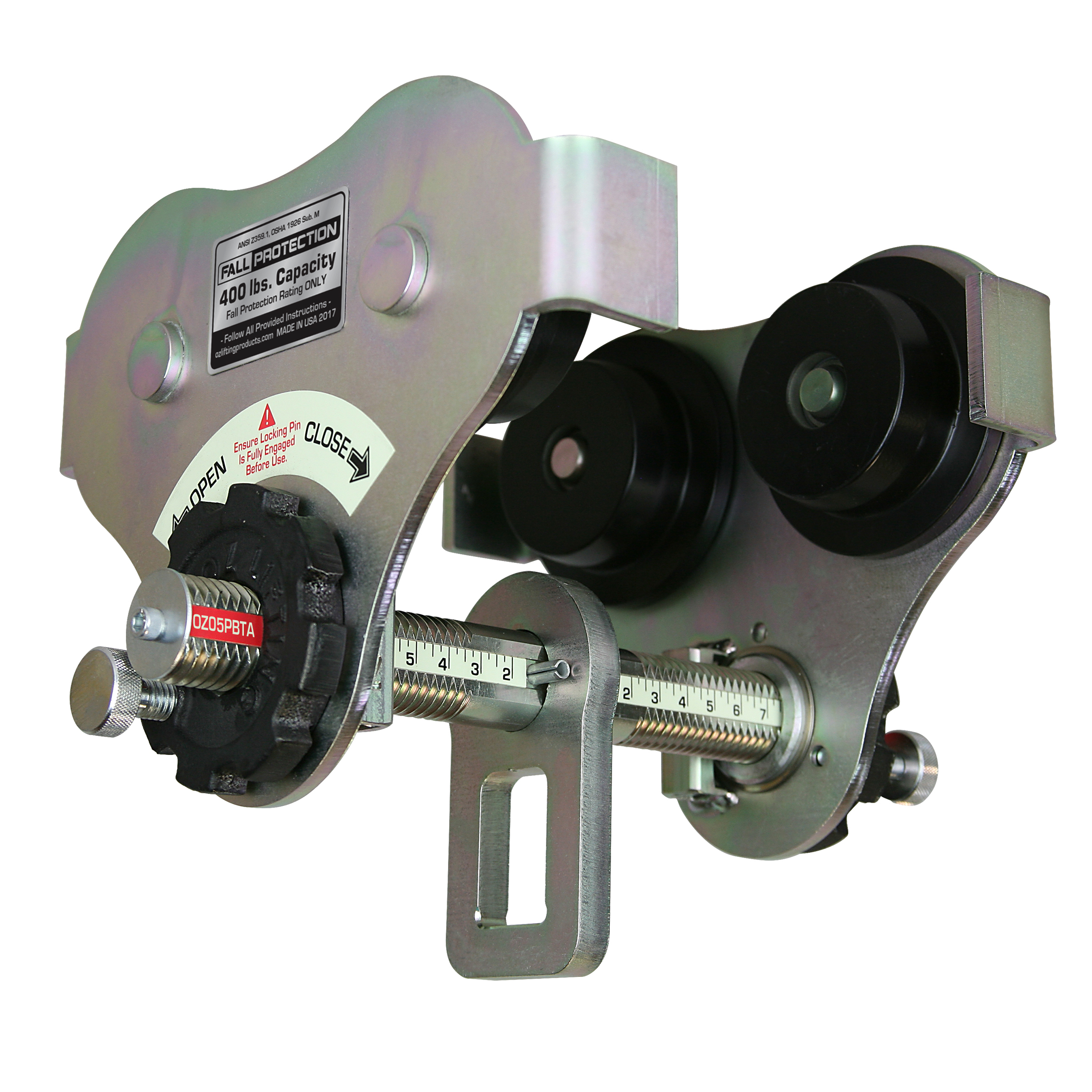

OZ Fall Protection Beam Trolley, 2.75 to 8 in. Flange Width, OZ05PBTA-MR

Availability: In stock

SKU: OZ05PBTA-MR

Manufacturer part number: OZ05PBTA-MR

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Flange Width *

Beam Thickness *

$545.00

Qty:

Documents, Drawings, and Manuals

Brochure

OZ Fall Protection Clamps & Trolleys Brochure

Manual

OZ Fall Protection Clamps & Trolleys Manual

Product Specifications

Attribute name	Attribute value
Features	Part No.: OZ05PBTA-MR Fall Protection Capacity: 400 lbs. Material Handling Load: 1,000 lbs. Flange Width: 2.75 to 8 in. Max. Flange Thickness: 1.12 in. Min. Radius Curve: 2.75 ft. Weight: 18.0 lbs. Fast and easy width adjustments. Built-in width adjustment indicator. Universal wheel tread fits most I, S, and W-Beams. Premium double-sealed ball bearings. ROHS-compliant, zinc-plated finish. Anti-drop plates. Glow in the dark decals. Ships fully assembled.
Standards/Approvals	OSHA 1926 Subpart M, OSHA 1910, ASME Z359.1-2007, ASME A10.32-2012
Warranty	10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EFP's repair facility.)
Country of Origin	Made in the USA
